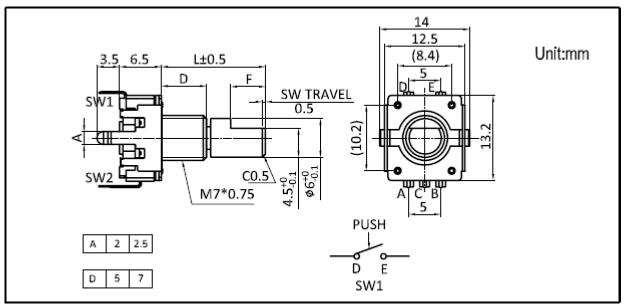

E1231XX1H1

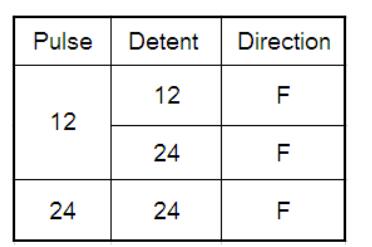

Number of pulse	口 12 口 24
Push-on switch	Yes
Travel of push-on switch	0.5±0.3mm
Operating temperature range	-10℃-+70℃

Electrical characteristics
	Ratings	1mA 5V DC

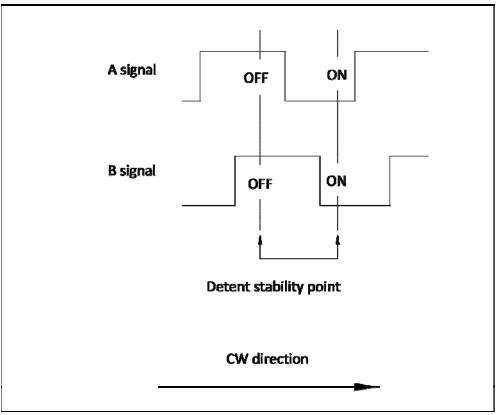

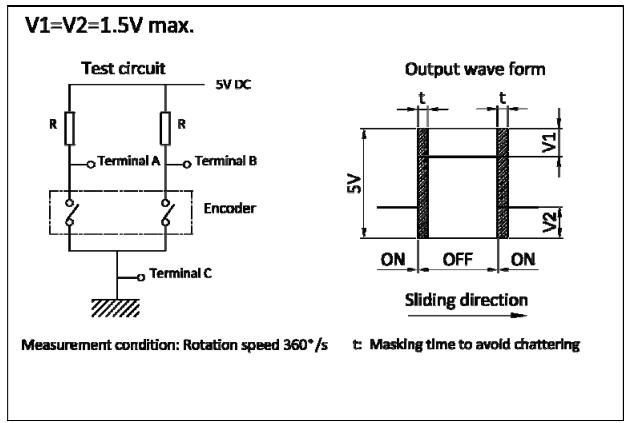

	Output signal	Two phase A and B
	Max./min. operating current (Resistive load)	10mA/1mA
	Insulation resistance	100MΩ min., 250V DC
	Voltage proof	300V AC for 1 min. or 360V AC for 2s

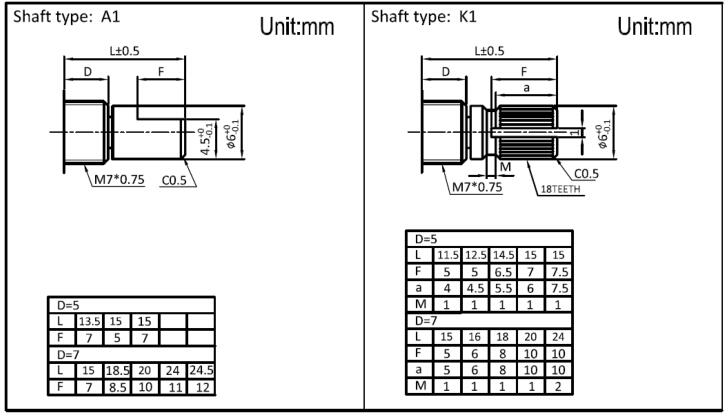

Mechanical characteristics
	Rotational torque	10±7mN.m
	Push-pull strength	100N

Push-on switch specifications
	Contact arrangement	100mΩ max./200mΩ max
	Travel	0.5±0.3mm
	Operating force	5±1.5N
	Ratings	0.1A 5V DC (500μA 5V DC min
	Contact resistance (Initial performance/After lifetime)	100mΩ max./200mΩ max
	Operating life	30,000 cycles

Durability	Operating life	30,000 cycles
MOQ		1.000pcs


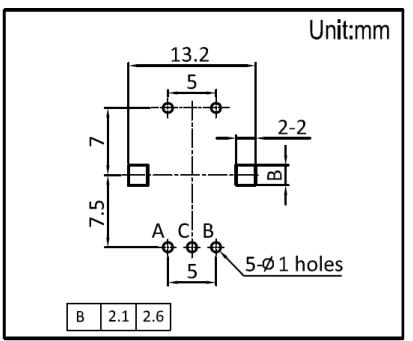

Wave soldering
	Soldering surface temperature	100℃ max
	Heating time	2 min. max
	Soldering temperature	260℃ ±5℃ max
	Soldering time	5 ±1s
	No. of solders	2 time max

This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
Please place purchase orders per minimum order unit (integer).
Products other than those listed in above products are also available. Please contact us for details.
"L" in the "Lever Wobble" column of the above table indicates the length of lever.
This products can be used in vehicles.
Although these products are designed to perform over a wide operating temperature range, please ensure that you receive and read the formal delivery specifications before use.
