E1230XX1H1

Number of pulse	E1230XX1H1
Push-on switch	Without
Travel of push-on switch	Without
Operating temperature range	-10℃-+70℃

Electrical characteristics
	Ratings	5mA/0.5mA

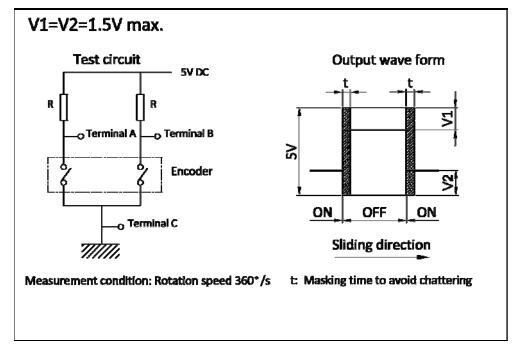

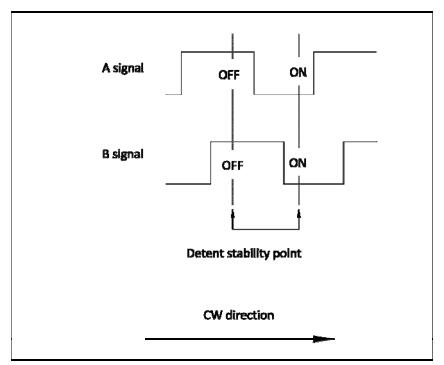

	Output signal	Two phase A and B
	Max./min. operating current (Resistive load)	5mA/0.5mA
	Insulation resistance	10MΩ min, 50V DC
	Voltage proof	50V AC for 1 minute

Mechanical characteristics
	Rotational torque	3 to 20mN.m
	Push-pull strength	80N

Push-on switch specifications
	Contact arrangement
	Travel
	Operating force
	Ratings	0.5mA 5V DC
	Contact resistance (Initial performance/After lifetime)
	Operating life	30,000 cycles

Durability	Operating life	30,000 cycles
MOQ		1.000pcs


Wave soldering
	Soldering surface temperature	100℃ max
	Heating time	2 min. max
	Soldering temperature	260℃ ±5℃ max
	Soldering time	5 ±1s
	No. of solders	2 time max

This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
Please place purchase orders per minimum order unit (integer).
Products other than those listed in above products are also available. Please contact us for details.
"L" in the "Lever Wobble" column of the above table indicates the length of lever.
This products can be used in vehicles.
Although these products are designed to perform over a wide operating temperature range, please ensure that you receive and read the formal delivery specifications before use.
