E1201DX3W1


Part number E1201DX3W1
Structure SMT
Actuator configuration Optional
Actuator length Optional
Number of detent E1201DX3W1


Number of pulse 口 12 口 24
Push-on switch Yes
Travel of push-on switch Yes
Operating temperature range -10℃-+70℃


Electrical characteristics

Ratings 1mA 5V DC
Output signal Two phase A and B
Max./min. operating current (Resistive load) 10mA/1mA
Insulation resistance 100MΩ min., 250V DC
Voltage proof 300V AC for 1 min. or 360V AC for 2s



Mechanical characteristics

Rotational torque 10±7mN.m
Push-pull strength 100N



Push-on switch specifications

Contact arrangement Single pole single throw (Push-on)
Travel 0.5±0.3mm
Operating force 5±1.5N
Ratings 1mA 5V DC
Contact resistance (Initial performance/After lifetime) 100mΩ max./200mΩ max
Operating life 30,000 cycles



Durability Operating life 30,000 cycles
MOQ   1.000pcs

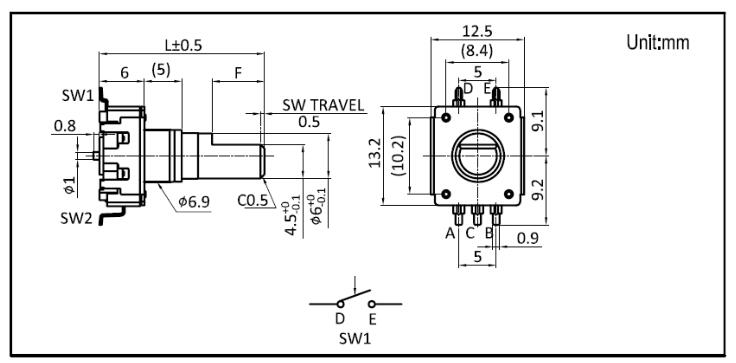

Dimensions

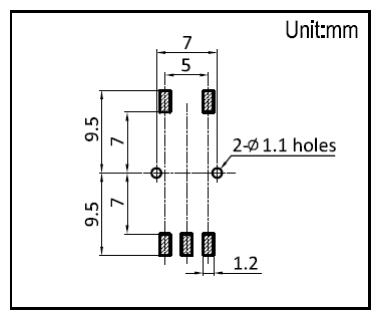

Mounting Hole Dimensions

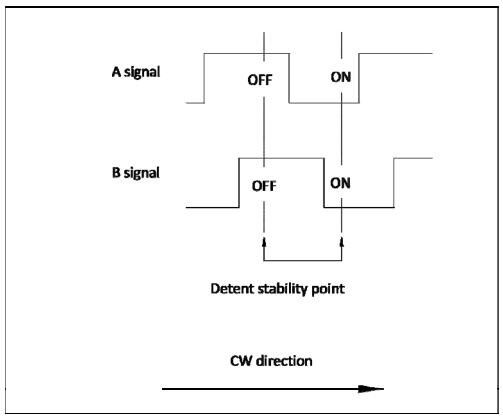

Output Wave

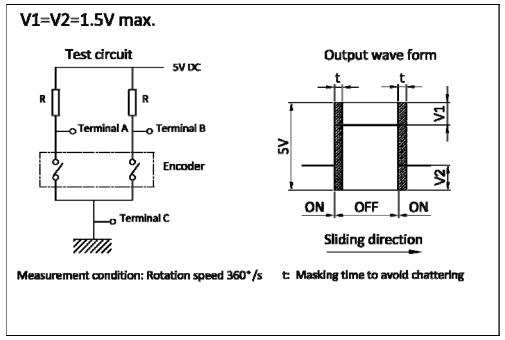

Sliding Noise

Pulse and Detent Options

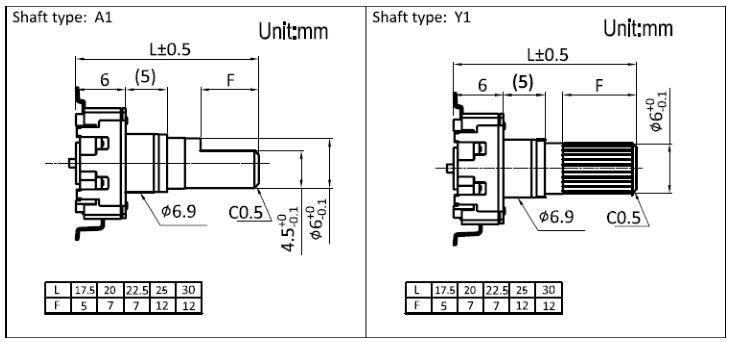

Shaft and Shaft Length Options

Packing specifications


Quantity per carton 2000 pcs
Packing method Plastic box
Carton dimension 460X285X310mm


Soldering conditions


Wave soldering

Soldering surface temperature 100℃ max
Heating time 2 min. max
Soldering temperature 260℃ ±5℃ max
Soldering time 5 ±1s
No. of solders 2 time max



Hand soldering

Tip temperature 350℃ max
Soldering time 3s max
No. of solders 1 time



Notes are common to this series/models.

  1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
  2. Please place purchase orders per minimum order unit (integer).
  3. Products other than those listed in above products are also available. Please contact us for details.
  4. "L" in the "Lever Wobble" column of the above table indicates the length of lever.
  5. This products can be used in vehicles.
    Although these products are designed to perform over a wide operating temperature range, please ensure that you receive and read the formal delivery specifications before use.
