E1200XX0H1


Part number E1200XX0H1
Structure Vertical
Actuator configuration Optional
Actuator length Optional
Number of detent 12/24


Number of pulse 口 12 口 24
Push-on switch Without
Travel of push-on switch Without
Operating temperature range -10℃-+70℃


Electrical characteristics

Ratings 0.5mA 5V DC
Output signal Two phase A and B
Max./min. operating current (Resistive load) 5mA/0.5mA
Insulation resistance 10MΩ min, 50V DC
Voltage proof 50V AC for 1 minute



Mechanical characteristics

Rotational torque 3 to 20mN.m
Push-pull strength 80N



Push-on switch specifications

Contact arrangement
Travel
Operating force
Ratings 10mA 5V DC
Contact resistance (Initial performance/After lifetime)
Operating life 30,000 cycles



Durability Operating life 30,000 cycles
MOQ   1.000pcs

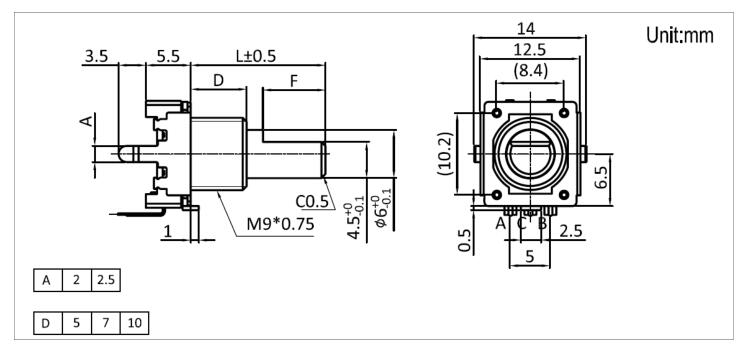

Dimensions

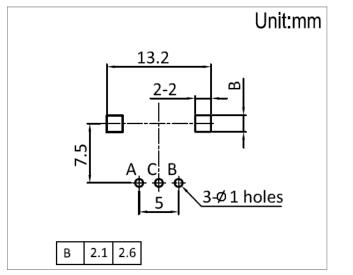

Mounting Hole Dimensions

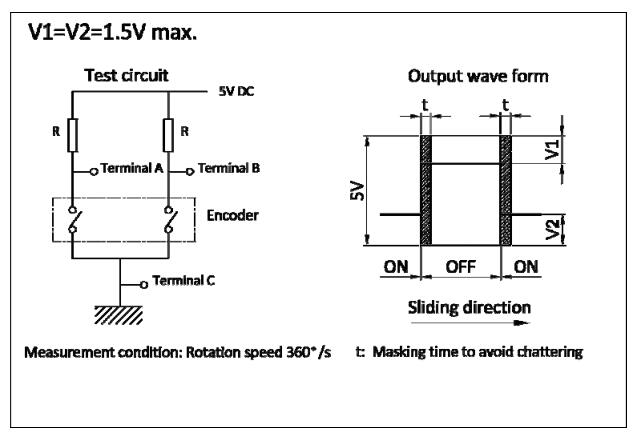

Output Wave

Sliding Noise

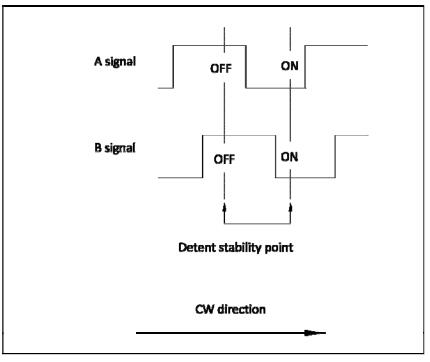

Pulse and Detent Options

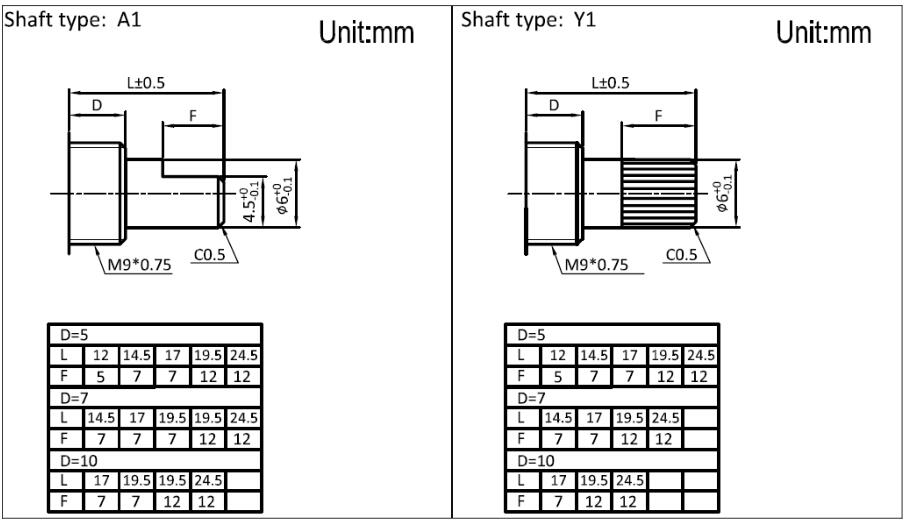

Shaft and Shaft Length Options

Packing specifications


Quantity per carton 2000 pcs
Packing method Plastic box
Carton dimension 460X285X310mm


Soldering conditions


Wave soldering

Soldering surface temperature 100℃ max
Heating time 2 min. max
Soldering temperature 260℃ ±5℃ max
Soldering time 5 ±1s
No. of solders 2 time max



Hand soldering

Tip temperature 350℃ max
Soldering time 3s max
No. of solders 1 time



Notes are common to this series/models.

  1. This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
  2. Please place purchase orders per minimum order unit (integer).
  3. Products other than those listed in above products are also available. Please contact us for details.
  4. "L" in the "Lever Wobble" column of the above table indicates the length of lever.
  5. This products can be used in vehicles.
    Although these products are designed to perform over a wide operating temperature range, please ensure that you receive and read the formal delivery specifications before use.
