SS466AMS2

Part number	SS466
Structure	Vertical encoder with dispaly screen switch
Actuator configuration
Actuator length
Number of detent	14

Number of pulse	14
Push-on switch	Yes
Travel of push-on switch
Operating temperature range	-25℃~+85℃

Electrical characteristics
	Ratings	0.33

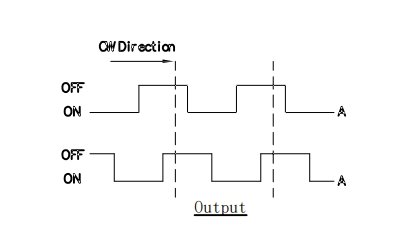

	Output signal	CW direction
	Max./min. operating current (Resistive load)
	Insulation resistance	100MΩ Mini
	Voltage proof	AC 300V

Mechanical characteristics
	Rotational torque	300±100gf
	Push-pull strength	≥70 N

Push-on switch specifications
	Contact arrangement
	Travel
	Operating force	300±100gf
	Ratings
	Contact resistance (Initial performance/After lifetime)
	Operating life	25,000 Cycles

Durability	Operating life	25,000 Cycles
MOQ		1000 pcs


Quantity per carton	100 pcs/ carton
Packing method	packing with pearl cotton bag
Carton dimension	450mmx360mmx240mm

Wave soldering
	Soldering surface temperature
	Heating time
	Soldering temperature
	Soldering time
	No. of solders

This site catalog shows only outline specifications. When using the products, please obtain formal specifications for supply.
Please place purchase orders per minimum order unit (integer).
Products other than those listed in above products are also available. Please contact us for details.
"L" in the "Lever Wobble" column of the above table indicates the length of lever.
This products can be used in vehicles.
Although these products are designed to perform over a wide operating temperature range, please ensure that you receive and read the formal delivery specifications before use.
