SD5.5X3.5 W1-2.5D-000

Mechanical characteristics
	Total rotational angle：
	Rotational torque：
	Rotational stopper strength：
	Push-pull strength：
	Shaft wobble：
	Bushing nut tighten strength：
	Shaft play in shaft direction：
	Shaft play in rotational wobble：
	Click torque：

Electrical characteristics
	Rated power：	0.2 VA Max
	Poles：
	Sections：
	Voltage proof：

Durability
	Salt mist：
	Rotational life：	100,000 Cycles

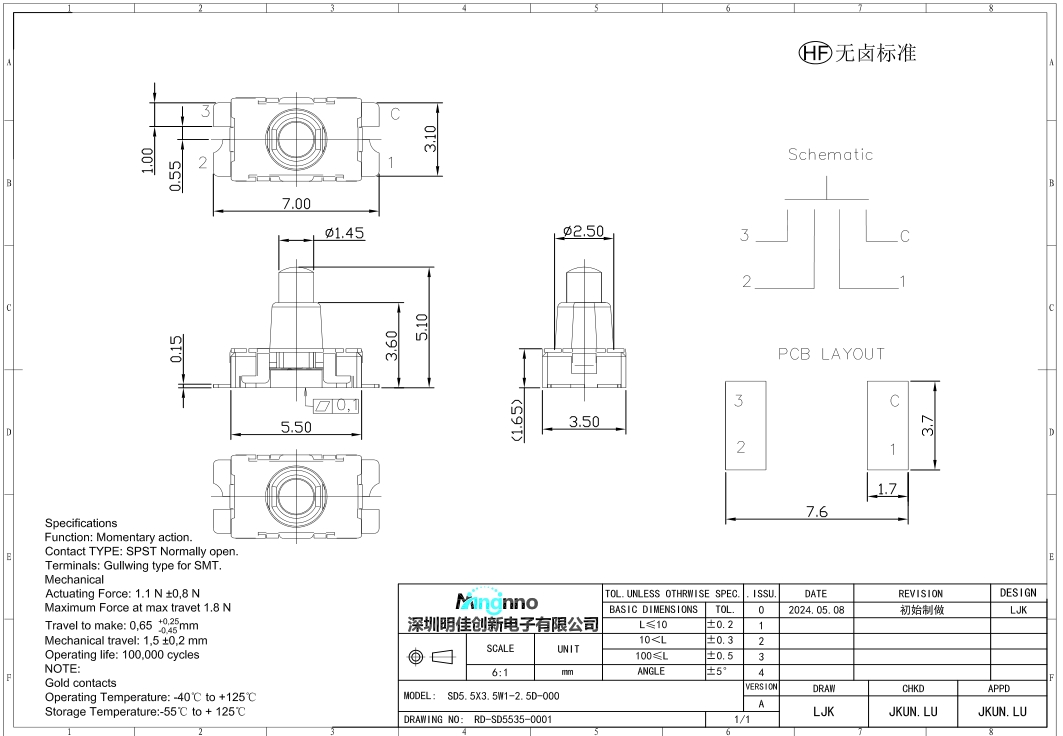

Dimentions

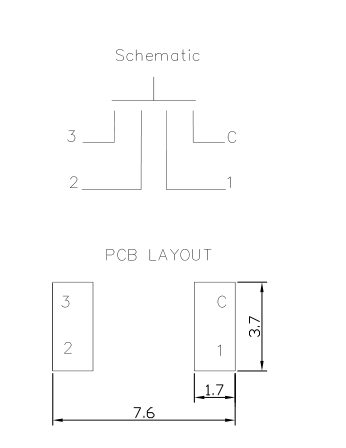

Mounting Hole Details And Circuit Diagram

Shaft style and shaft length

Soldering conditions

Wave Soldering
	Soldering Surface Temperature:	260℃ ± 5℃
	Heat time:	3 ±0.5 S
	Soldering Temperature:
	Soldering Time:

Hand Soldering
	Soldering Temperature：	350 ℃ Max
	Soldering Time:	3±1 S

Note:

The colors shown in this series may different from the actual products.
Apart from the above listed products, there are more types available.
If there are special requirements for the products, please contact us for details.
