R2300NOXCC1
| Part number |
R2300NOXCC1-2 OK |
| Number of resistor elements |
Single gang |
| Mounting direction |
Horizontal |
| Bushing fixing method |
Screw |
| Shaft type |
Optional (customized) |
|
|
| Shaft length |
Optional(customized) |
| Center detent |
|
| Total resistance |
500Ω-1.000kΩ |
| Resistance taper |
Linear |
| Operating temperature range |
-10℃-+60℃ |
|
|
Electrical characteristics |
| Total resistance tolerance |
口±20% 口Other |
| Rated power |
Linear 0.25W |
| Max. operating voltage |
■Linear taper B:AC 50 V; □other:AC 12 V |
| Residual resistance |
20Ω max. |
| Sliding noise |
Less than 100mV |
| Insulation resistance |
100MΩ min at __100___VDC |
| Voltage proof |
1 minute atAC 300 V |
|
|
|
Mechanical characteristics |
| Total rotational angle |
360° |
| Rotational torque |
20_gf. ㎝ ~__50_ gf. ㎝ |
| Stopper strength |
_0_kgf. ㎝ Min |
| Push-pull strength |
|
| Vibration |
|
|
|
|
| Durability |
Operating life |
More than 15,000 cycles |
| MOQ |
|
1.000pcs |

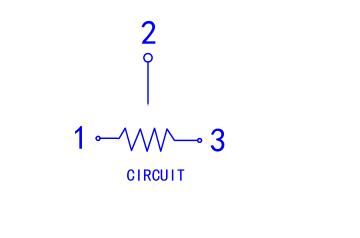

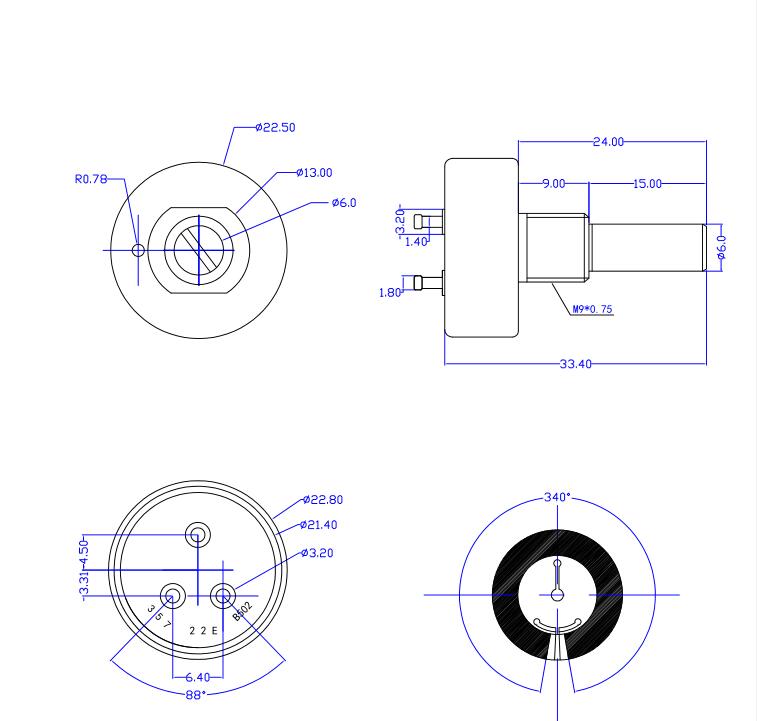

Mounting Hole Dimensions
Attached Parts Dimensions
Shaft Options
Shaft Length Options
Packing specifications
| Quantity per carton |
2000 pcs |
| Packing method |
Optional |
| Carton dimension |
460X285X310mm |
|
|
Soldering conditions
Wave soldering |
| Soldering surface temperature |
|
| Heating time |
|
| Soldering temperature |
270℃ ±5℃ max |
| Soldering time |
5 ±1s |
| No. of solders |
2 time max |
|
|
|
Hand soldering |
| Tip temperature |
350℃ max |
| Soldering time |
3s max |
| No. of solders |
1 time |
|
|
|
Note:
- The colors shown in this series may different from the actual products.
- Apart from the above listed products, there are more types available.
- If there are special requirements for the products, please contact us for details.
