English| Part number | R16102NSXBV1 |
|---|---|
| Number of resistor elements | Single gang |
| Mounting direction | Vertical |
| Bushing fixing method | Screw |

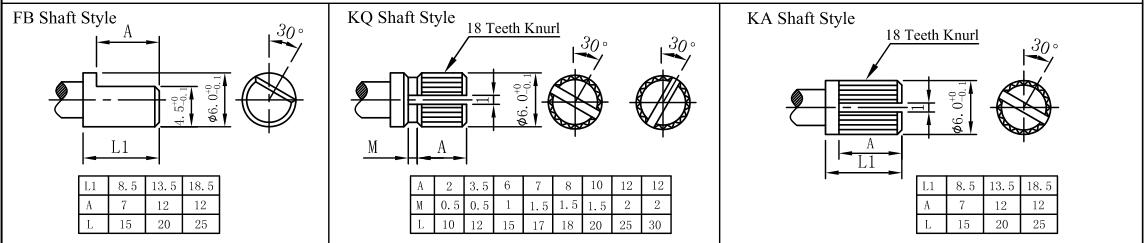

| Shaft type | Optional |
|
|
|
| Shaft length | Optional |
|---|---|
| Center detent | 口None 口 1CC |
| Total resistance | 500Ω-1.000kΩ |
| Resistance taper | Optional |
| Operating temperature range | -10℃-+70℃ |
|
|
|
Electrical characteristics |
||
|---|---|---|
| Total resistance tolerance | 口±20% 口Other | |
| Rated power | 0.05W | |
| Max. operating voltage | 150V AC, 20V DC | |
| Residual resistance | 1% Max of total | |
| Sliding noise | Less than 100mV | |
| Insulation resistance | 10MΩ min, at 500V AC | |
| Voltage proof | 2000V for 1 minutes | |
|
|
|
|
Mechanical characteristics |
||
|---|---|---|
| Total rotational angle | 300°±5° | |
| Rotational torque | 400±200gf.cm | |
| Stopper strength | 6kgf.cm | |
| Push-pull strength | 80N | |
| Vibration | 0.7x L /30mm p-p | |
|
|
|
|
| Durability | Operating life | 15.000 cycles |
|---|---|---|
| MOQ | 1600pcs |
