English Mechanical characteristics |
||
|---|---|---|
| Total rotational angle： | □ 90°±5 □ 60°±5° □ 30°±5° | |
| Rotational torque： | 400±200gf.cm | |
| Rotational stopper strength： | ≥4Kgf.cm | |
| Push-pull strength： | Push 6kgf/pull 4kgf | |
| Shaft wobble： | ||
| Bushing nut tighten strength： | ||
| Shaft play in shaft direction： | ||
| Shaft play in rotational wobble： | ||
| Click torque： | ||
|
|
|
|
Electrical characteristics |
||
|---|---|---|
| Rated power： | DC16V 0.1A | |

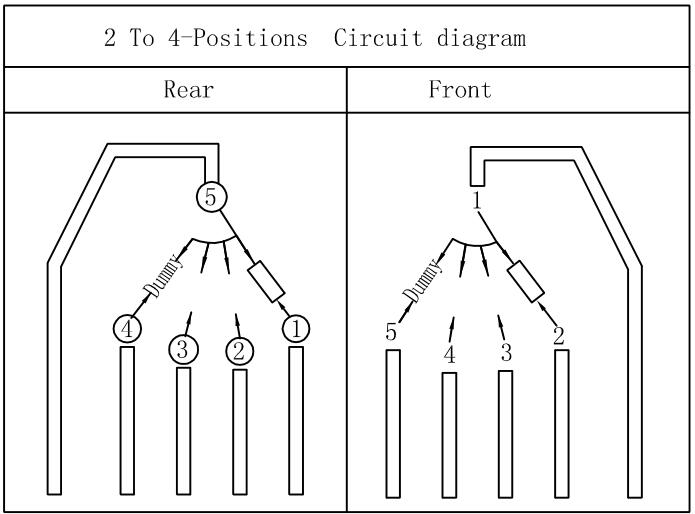

| Poles： | □ 3 □ 2 □ 1 | |
| Sections： | ||
| Voltage proof： | Apply A.C100V for 1min(Between terminal for reinforcing and the other terminals) | |
|
|
|
|
Durability |
||
|---|---|---|
| Salt mist： | ||
| Rotational life： | 10,000T | |
|
|
|
|
