English Mechanical characteristics |
||
|---|---|---|

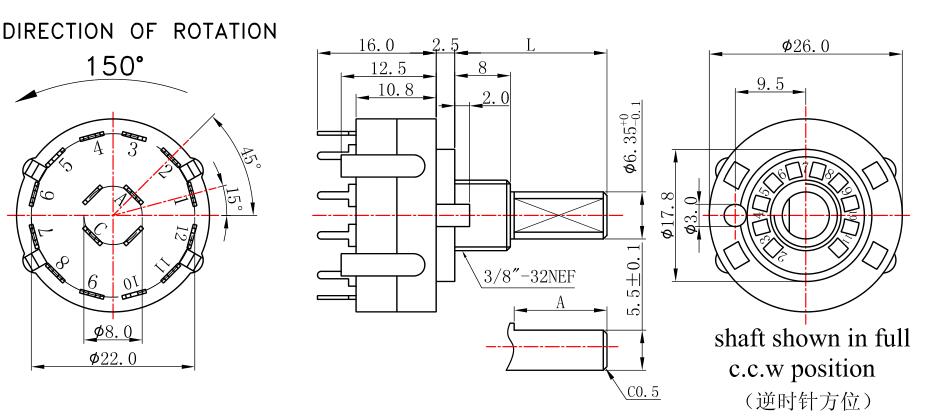

| Total rotational angle： | 360° | |
| Rotational torque： | 800～1500gf.c | |
| Rotational stopper strength： | 8Kgf.cm MIN | |
| Push-pull strength： | ||
| Shaft wobble： | ||
| Bushing nut tighten strength： | ||
| Shaft play in shaft direction： | ||
| Shaft play in rotational wobble： | ||
| Click torque： | ||
|
|
|
|
Electrical characteristics |
||
|---|---|---|
| Rated power： | DC 16V 3A Max | |

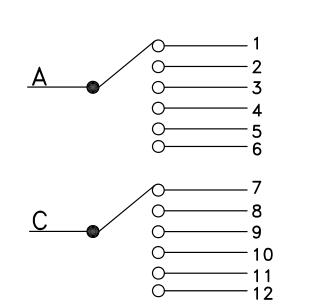

| Poles： | □1 2 □3 □4 □6 | |
| Sections： | □2 □3 □4 □6 □12 | |
| Voltage proof： | 300V AC for 1 minute | |
|
|
|
|
Durability |
||
|---|---|---|
| Salt mist： | In the temperature of 35°C ±2°C and concentration of 5±1% for 8H then clean with water | |
| Rotational life： | 10，000cycle | |
|
|
|
|
