English| Part number | R2410GS |
|---|---|

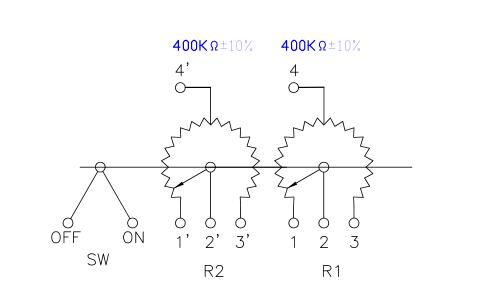

| Number of resistor elements | Dual gang |
| Mounting direction | Vertical soldering |
| Bushing fixing method | Screw |
| Shaft type | Optional (customized) |
|
|
|
| Shaft length | Optional(customized) |
|---|---|
| Center detent | N/A |
| Total resistance | 500Ω-1.000kΩ |
| Resistance taper | Optional |
| Operating temperature range | -10℃-+70℃ |
|
|
|
Electrical characteristics |
||
|---|---|---|
| Total resistance tolerance | ±10% | |
| Rated power | Linear 0.5W, The others 0.25W | |
| Max. operating voltage | Linear taper BAC 500V, other tapers AC 250V | |
| Residual resistance | 20Ω max. | |
| Sliding noise | Less than 47mV | |
| Insulation resistance | 100MΩ MIN. at D.C 500 volts | |
| Voltage proof | 1000V AC ( one minute ) | |
|
|
|
|
Mechanical characteristics |
||
|---|---|---|
| Total rotational angle | 300°±10° | |
| Rotational torque | 150gf.cm～300gf.cm. ( rotational speed 60°/1 sec ) | |
| Stopper strength | ||
| Push-pull strength | ||
| Vibration | ||
|
|
|
|
| Durability | Operating life | More than 15.000 cycles |
|---|---|---|
| MOQ | 500 |
