R24103FSXBN1


Part number R24103FSXBN1
Number of resistor elements 4 gangs
Mounting direction Vertical soldering
Bushing fixing method Screw
Shaft type Optional (customized)


Shaft length Optional(customized)
Center detent 口None 口 1CC
Total resistance 500Ω-1.000kΩ
Resistance taper Optional
Operating temperature range -10℃-+60℃


Electrical characteristics

Total resistance tolerance 口±20% 口Other
Rated power Linear 0.5W, The others 0.25W
Max. operating voltage linear taper BAC 500V, other tapers AC 250V
Residual resistance Terminal 1-2/2-3 _10__Ω MAX
Sliding noise less than 47mV
Insulation resistance 100MΩ MIN. at D.C 500 volts
Voltage proof 1000V AC ( one minute )



Mechanical characteristics

Total rotational angle 300°±10°
Rotational torque 150gf.cm~300gf.cm. ( rotational speed 60°/1 sec )
Stopper strength
Push-pull strength
Vibration



Durability Operating life More than 15,000 cycles
MOQ   500pcs

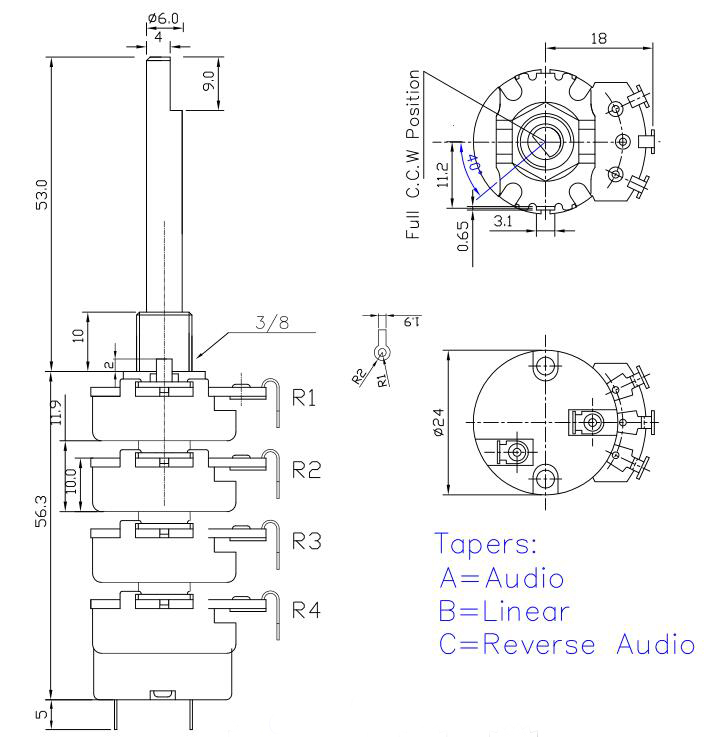

Dimensions

Mounting Hole Dimensions

Attached Parts Dimensions

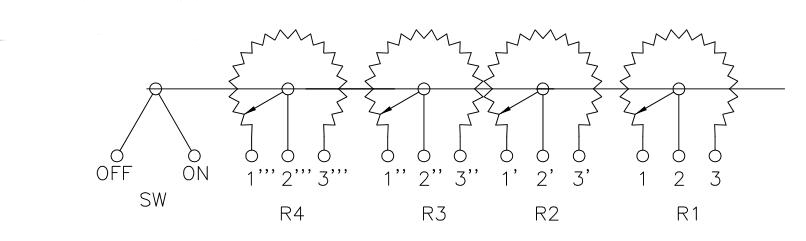

Circuit Diagram

Shaft Options

Shaft Length Options

Resistance Taper Options

Packing specifications


Quantity per carton 1000
Packing method Optional
Carton dimension 460X285X310mm


Soldering conditions


Wave soldering

Soldering surface temperature 100℃ max
Heating time 2 min. max
Soldering temperature 260℃ ±5℃ max
Soldering time 5 ±1s
No. of solders 2 time max



Hand soldering

Tip temperature 350℃ max
Soldering time 3s max
No. of solders 1 time



Note:

  1. The colors shown in this series may different from the actual products.
  2. Apart from the above listed products, there are more types available.
  3. If there are special requirements for the products, please contact us for details.
