English Mechanical characteristics |
||
|---|---|---|
| Total rotational angle： | □30°±3 □45°±3 □75°±3 | |
| Rotational torque： | 10-70mN.m.(100-700gf.cm) | |
| Rotational stopper strength： | 6.0Kgf.cm Max | |
| Push-pull strength： | 0.4 Max | |
| Shaft wobble： | 0.7*L/30mm p-p Max | |
| Bushing nut tighten strength： | 7.0Kgf.cm Min | |
| Shaft play in shaft direction： | 0.4mm Max | |
| Shaft play in rotational wobble： | 5°Max | |
| Click torque： | ||
|
|
|
|
Electrical characteristics |
||
|---|---|---|
| Rated power： | ||

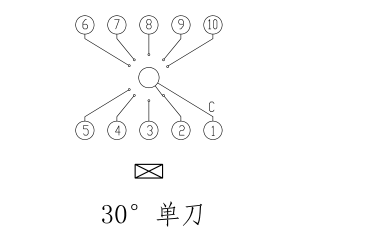

| Poles： | □1 2 | |
| Sections： | □2 □3 □4 □5 □6 □7 □8 □9 | |
| Voltage proof： | 500V AC for 1 minute | |
|
|
|
|
Durability |
||
|---|---|---|
| Salt mist： | ||
| Rotational life： | 10000±200 cycles | |
|
|
|
|
