English Mechanical characteristics |
||
|---|---|---|
| Total rotational angle： | 315°± 5° | |
| Rotational torque： | 1.0±0.5kgf.cm | |
| Rotational stopper strength： | 4kgf-cm | |
| Push-pull strength： | ||
| Shaft wobble： | 1 mm max | |
| Bushing nut tighten strength： | 8 kgf- cm mini | |
| Shaft play in shaft direction： | ||
| Shaft play in rotational wobble： | ||
| Click torque： | ||
|
|
|
|
Electrical characteristics |
||
|---|---|---|
| Rated power： | 0.15W(50℃) | |

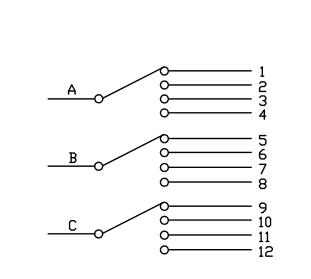

| Poles： | □1 2 □3 □4 □5 □6 | |
| Sections： | □2 □3 □4 □5 □6 | |
| Voltage proof： | ||
|
|
|
|
Durability |
||
|---|---|---|
| Salt mist： | ||
| Rotational life： | 10，000cycle | |
|
|
|
|
