English Mechanical characteristics |
||
|---|---|---|
| Total rotational angle： | 30°± 3° | |
| Rotational torque： | 200～600gf.cm | |
| Rotational stopper strength： | 5Kgf.cm Min | |
| Push-pull strength： | Pull:8kgf Push:8kgf Min at 10 sec | |

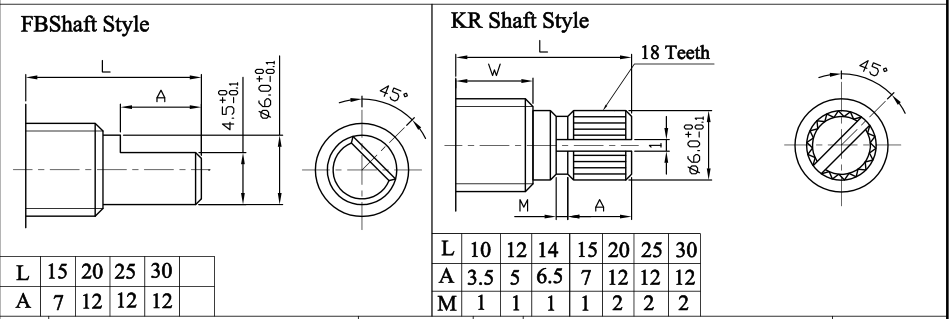

| Shaft wobble： | 0.7*L/30mm (P-P)L=shaft Length | |
| Bushing nut tighten strength： | 7Kgf.cm Min | |
| Shaft play in shaft direction： | 0.4mm Max | |
| Shaft play in rotational wobble： | 5° Max | |
| Click torque： | 500±200gf.cm | |
|
|
|
|
Electrical characteristics |
||
|---|---|---|
| Rated power： | DC 16V 3A Max | |
| Poles： | □1 2 □3 □4 □5 □6 | |
| Sections： | □2 □3 □4 □5 □6 | |
| Voltage proof： | 1minute at 500VAC | |
|
|
|
|
Durability |
||
|---|---|---|
| Salt mist： | ||
| Rotational life： | ≧10,000cycles | |
|
|
|
|
