TD12016P

Mechanical characteristics
	Total rotational angle：	None
	Rotational torque：	None
	Rotational stopper strength：	None
	Push-pull strength：	None
	Shaft wobble：	Less than 1mm
	Bushing nut tighten strength：	None
	Shaft play in shaft direction：
	Shaft play in rotational wobble：
	Click torque：

Electrical characteristics
	Rated power：
	Poles：
	Sections：
	Voltage proof：	1000V AC(50-60Hz) for 1 minute

Durability
	Salt mist：
	Rotational life：	10，000cycle

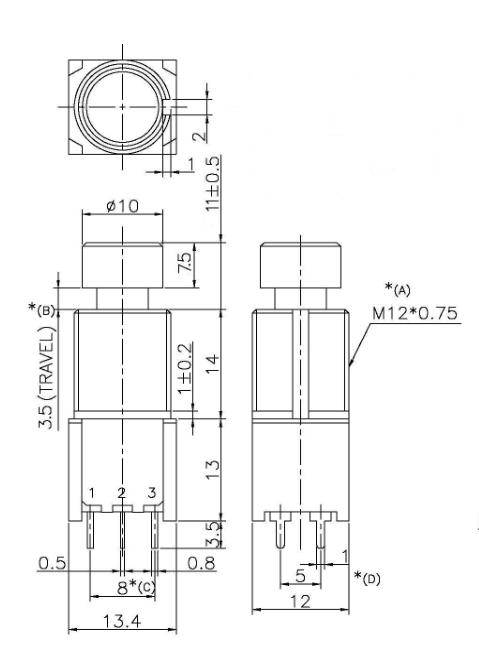

Dimentions

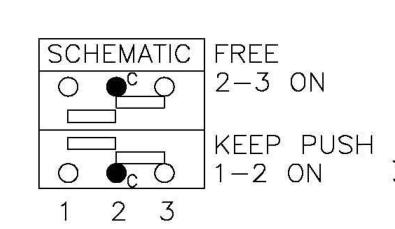

Mounting Hole Details And Circuit Diagram

Shaft style and shaft length

Soldering conditions

Wave Soldering
	Soldering Surface Temperature:
	Heat time:
	Soldering Temperature:	260±5°C
	Soldering Time:	1 time

Hand Soldering
	Soldering Temperature：	350±5°C
	Soldering Time:	1 time

Note:

The colors shown in this series may different from the actual products.
Apart from the above listed products, there are more types available.
If there are special requirements for the products, please contact us for details.
