RM10090NOBXN1


Part number RM10090NOBXN1
Number of resistor elements Single gang
Lever direction Straight pin
Travel 100mm
Type Motor fader
Lever type Optional


Lever length Optional
Total resistance 500Ω-1.000kΩ
Resistance taper Optional
Terminal type mounting
Touch sense track 口 Yes 口 NO
Operating temperature range -10℃-+70℃


Electrical characteristics

Total resistance tolerance 口±20% 口Other
Rated power 0.05W
Max. operating voltage 500V AC, 10V DC
Rated voltage of motor 10V DC
Max. current of motor 800mA or less(at 10V DC)
Sliding noise Less than 100mV
Insulation resistance 100MΩ min., 250V DC
Voltage proof 250V AC for 1 min



Mechanical characteristics

Operating force 0.8 ±0.5N
Stopper strength 100N.m
Lever push-pull strength 50N
Lever wobble (2 sides) 1.3mm
Lever deviation (1 side) 0.5mm max



Durability Operating life 100.000 ±2.000 cycles
MOQ   1.000pcs

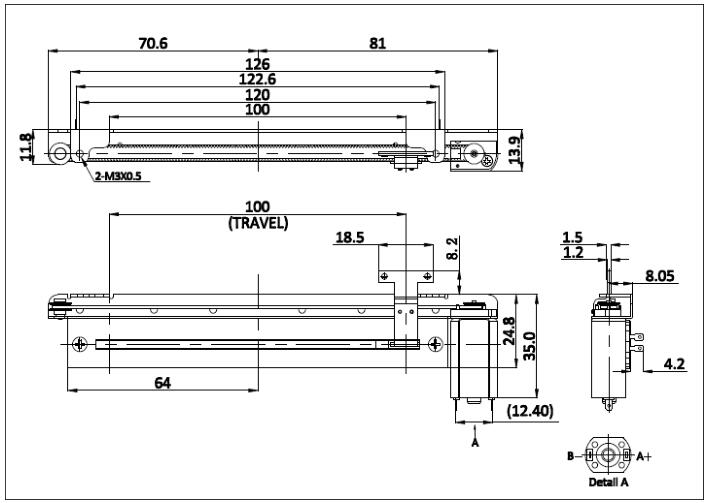

Dimensions

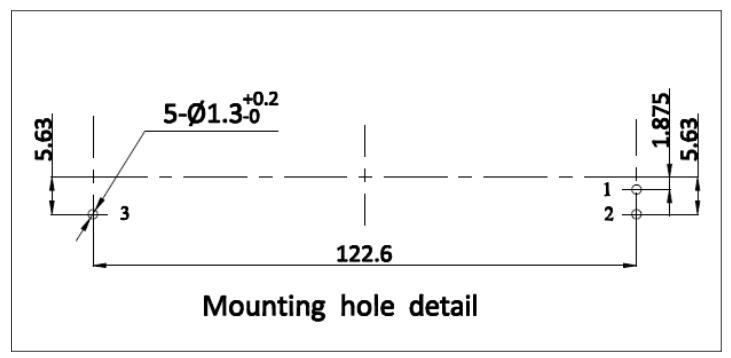

Mounting Hole Details

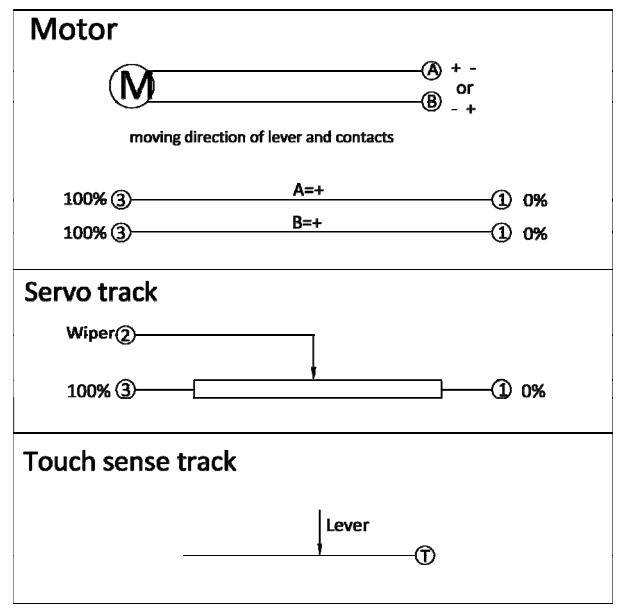

Circuit Diagram

Lever Type Options

Resistance Taper Options

Packing specifications


Quantity per carton 80 pcs
Packing method Plastic box
Carton dimension 350X275X250mm


Soldering conditions


Wave soldering

Soldering surface temperature
Heating time
Soldering temperature 260℃ ±5℃ max
Soldering time 5 ±1s
No. of solders 1 time max



Hand soldering

Tip temperature 350℃ max
Soldering time 3s max
No. of solders 1 time
