PT10NOV1
| Part number |
PT10NOV1 |
| Number of resistor elements |
|
| Mounting direction |
Vertical |
| Bushing fixing method |
|
| Shaft type |
|
|
|
| Shaft length |
|
| Center detent |
|
| Total resistance |
500Ω-1.000kΩ |
| Resistance taper |
Optional |
| Operating temperature range |
|
|
|
Electrical characteristics |
| Total resistance tolerance |
±20% |
| Rated power |
0.15W(50℃ |
| Max. operating voltage |
250V DC |
| Residual resistance |
30 Ω max |
| Sliding noise |
Less than 100mV |
| Insulation resistance |
|
| Voltage proof |
250V AC for 1 min |
|
|
|
Mechanical characteristics |
| Total rotational angle |
235°± 10° |
| Rotational torque |
20～200gf.cm |
| Stopper strength |
≥0.4Kgf.cm |
| Push-pull strength |
|
| Vibration |
|
|
|
|
| Durability |
Operating life |
5,000cycles |
| MOQ |
|
1.000pcs |

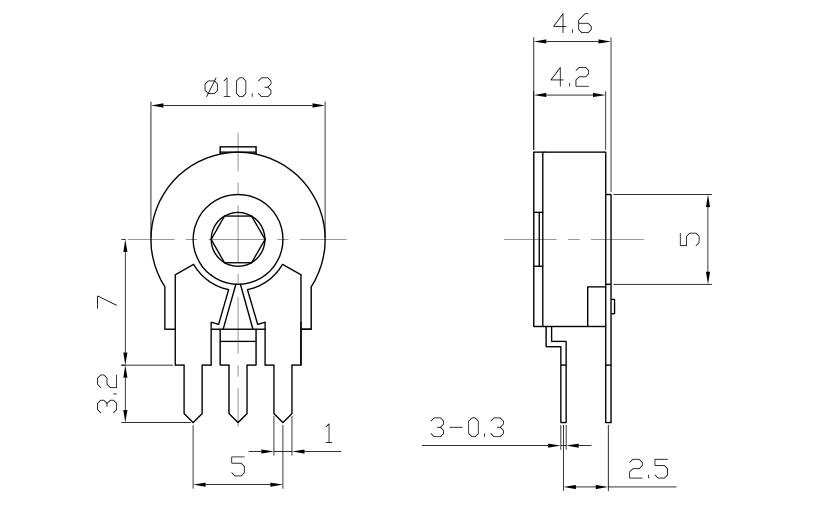

Attached Parts Dimensions
Shaft Options
Shaft Length Options
Packing specifications
| Quantity per carton |
|
| Packing method |
|
| Carton dimension |
|
|
|
Soldering conditions
Wave soldering |
| Soldering surface temperature |
100℃ max |
| Heating time |
|
| Soldering temperature |
260℃ ±5℃ max |
| Soldering time |
2S ±0.5S |
| No. of solders |
2 time max |
|
|
|
Hand soldering |
| Tip temperature |
|
| Soldering time |
2s max |
| No. of solders |
1 time |
|
|
|
Note:
- The colors shown in this series may different from the actual products.
- Apart from the above listed products, there are more types available.
- If there are special requirements for the products, please contact us for details.
