3266F
| Part number |
3266F |
| Number of resistor elements |
Single gang |
| Mounting direction |
Vertical |
| Bushing fixing method |
|
| Shaft type |
|
|
|
| Shaft length |
|
| Center detent |
|
| Total resistance |
500Ω-1.000kΩ |
| Resistance taper |
Optional |
| Operating temperature range |
≤±200×10ˉ 6 /℃(-55℃～+125℃) |
|
|
Electrical characteristics |
| Total resistance tolerance |
±20% |
| Rated power |
0.25W |
| Max. operating voltage |
|
| Residual resistance |
|
| Sliding noise |
|
| Insulation resistance |
R1≥1GΩ(100V AC) |
| Voltage proof |
220V AC for 1 min |
|
|
|
Mechanical characteristics |
| Total rotational angle |
（12 ±2）turns nom |
| Rotational torque |
≤35mN.m |
| Stopper strength |
|
| Push-pull strength |
|
| Vibration |
|
|
|
|
| Durability |
Operating life |
200 cycles |
| MOQ |
|
1.000pcs |

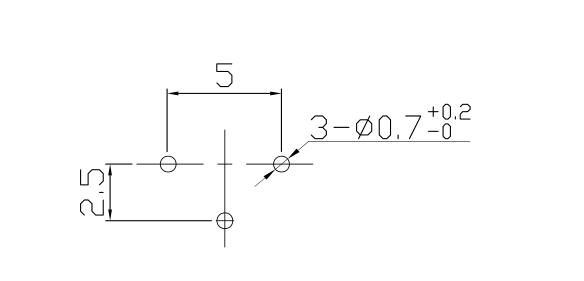

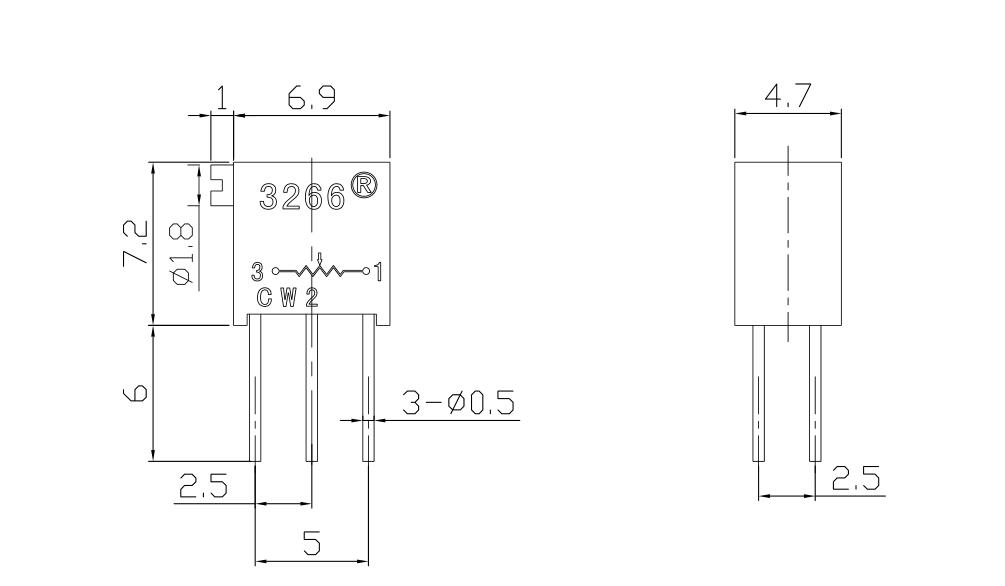

Attached Parts Dimensions
Shaft Options
Shaft Length Options
Packing specifications
| Quantity per carton |
|
| Packing method |
|
| Carton dimension |
|
|
|
Soldering conditions
Wave soldering |
| Soldering surface temperature |
|
| Heating time |
|
| Soldering temperature |
235℃ ±5℃ max |
| Soldering time |
2S ±0.5S |
| No. of solders |
|
|
|
|
Hand soldering |
| Tip temperature |
|
| Soldering time |
|
| No. of solders |
|
|
|
|
Note:
- The colors shown in this series may different from the actual products.
- Apart from the above listed products, there are more types available.
- If there are special requirements for the products, please contact us for details.
