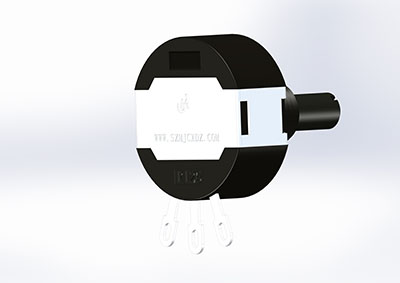

RI2601NOXEN1


Part number RI2601NOXEN1
Number of resistor elements single gang
Mounting direction Horizontal
Bushing fixing method
Shaft type Optional


Shaft length
Center detent
Total resistance 500Ω-1.000kΩ
Resistance taper Optional
Operating temperature range


Electrical characteristics

Total resistance tolerance 口±20% 口Other
Rated power 0.5W
Max. operating voltage Btaper250V DC Other taper B125V DC
Residual resistance R≤50KΩ ≤20Ω 50KΩ<R 0.3%max.of total resistance
Sliding noise Less than 100mV
Insulation resistance >100MΩ min. at 100V DC
Voltage proof 1mainute at1900V AC



Mechanical characteristics

Total rotational angle 260°± 10°
Rotational torque 30~200gf.cm
Stopper strength ≥5Kgf.cm
Push-pull strength Push≥100N Pull≥100N
Vibration 0.4*L/25mm P-P max.



Durability Operating life 10,000 Cycles
MOQ   1000

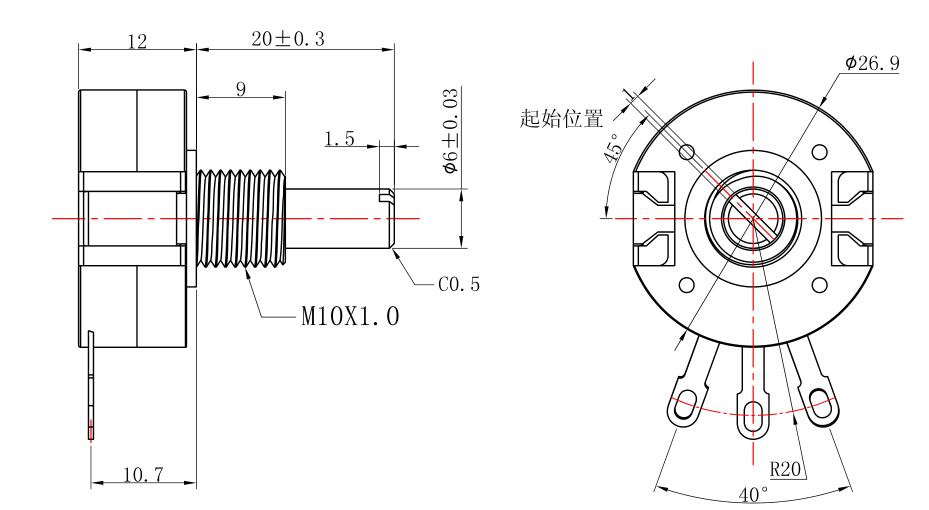

Dimensions

Mounting Hole Dimensions

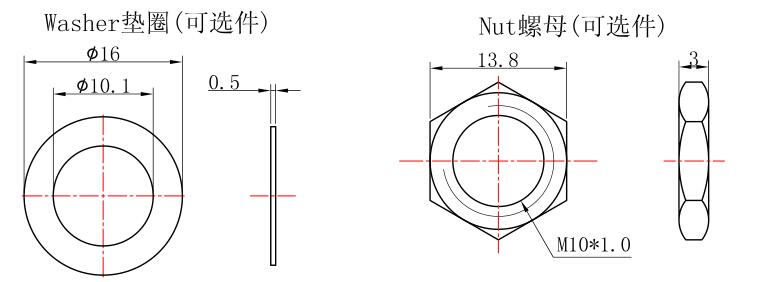

Attached Parts Dimensions

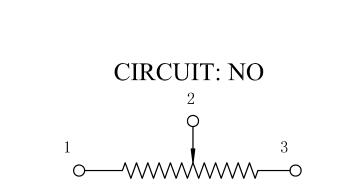

Circuit Diagram

Shaft Options

Shaft Length Options

Resistance Taper Options

Packing specifications


Quantity per carton 1000
Packing method
Carton dimension 460X285X310mm


Soldering conditions


Wave soldering

Soldering surface temperature 100℃ max
Heating time 2 min. max
Soldering temperature 300℃ ±5℃ max
Soldering time 3±1s
No. of solders 2 time max



Hand soldering

Tip temperature 350℃ max
Soldering time 2s max
No. of solders 1 time



Note:

  1. The colors shown in this series may different from the actual products.
  2. Apart from the above listed products, there are more types available.
  3. If there are special requirements for the products, please contact us for details.
