R22002XXBXXX
| Part number |
R22002XXBXXX |
| Number of resistor elements |
Single gang |
| Mounting direction |
|
| Bushing fixing method |
|
| Shaft type |
N/A |
|
|
| Shaft length |
N/A |
| Center detent |
N/A |
| Total resistance |
35kΩ |

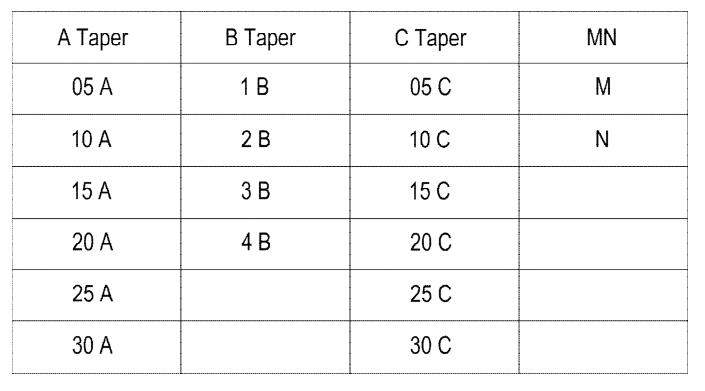

| Resistance taper |
Optional |
| Operating temperature range |
-40℃-+80℃ |
|
|
Electrical characteristics |
| Total resistance tolerance |
口±10% 口Other |
| Rated power |
0.1W |
| Max. operating voltage |
50V AC, 12V DC |
| Residual resistance |
|
| Sliding noise |
|
| Insulation resistance |
|
| Voltage proof |
250V AC for 1 min |
|
|
|
Mechanical characteristics |
| Total rotational angle |
|
| Rotational torque |
|
| Stopper strength |
|
| Push-pull strength |
|
| Vibration |
|
|
|
|
| Durability |
Operating life |
100000 |
| MOQ |
|
500 |

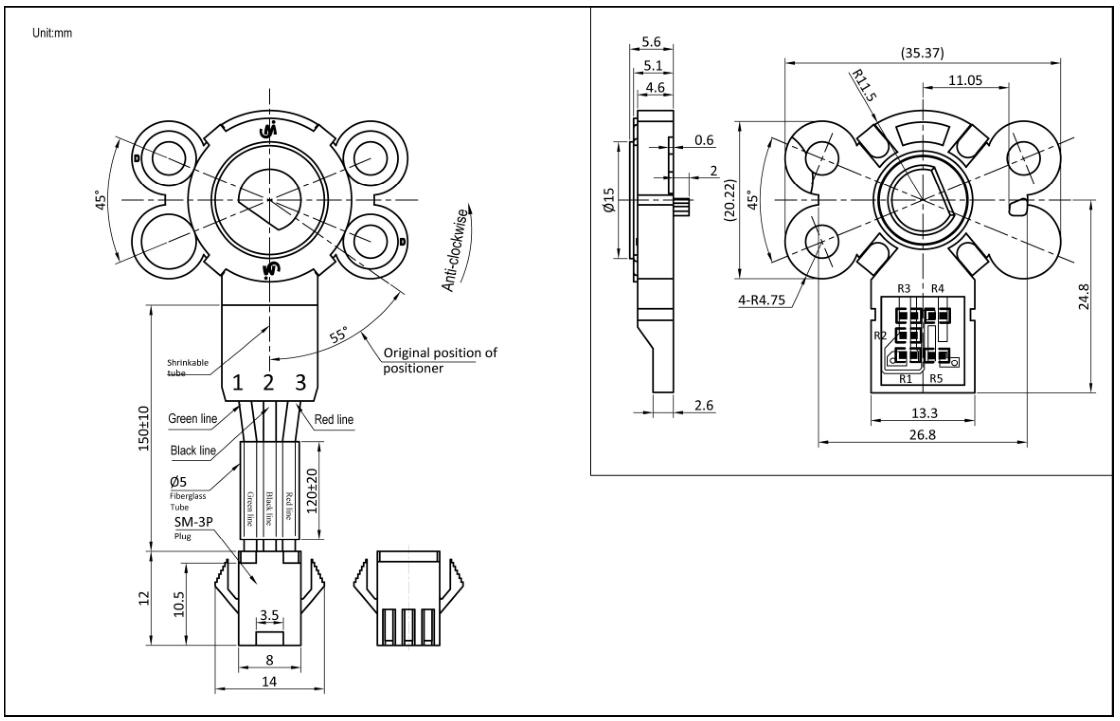

Attached Parts Dimensions

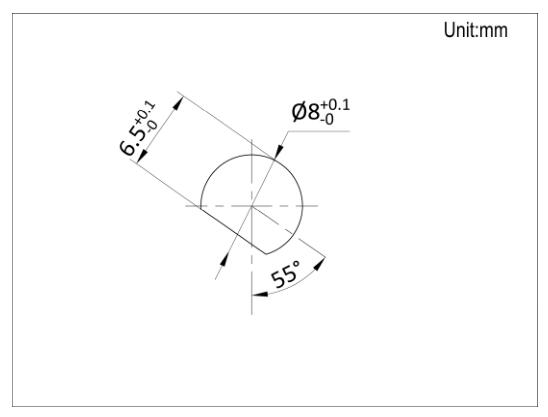

Shaft Options
Shaft Length Options
Packing specifications
| Quantity per carton |
|
| Packing method |
|
| Carton dimension |
|
|
|
Soldering conditions
Wave soldering |
| Soldering surface temperature |
|
| Heating time |
|
| Soldering temperature |
|
| Soldering time |
|
| No. of solders |
|
|
|
|
Hand soldering |
| Tip temperature |
|
| Soldering time |
|
| No. of solders |
|
|
|
|
Note:
- The colors shown in this series may different from the actual products.
- Apart from the above listed products, there are more types available.
- If there are special requirements for the products, please contact us for details.
