English| Part number | R12802NSXBV1 |
|---|---|
| Number of resistor elements | Single gang |
| Mounting direction | Horizontal |
| Bushing fixing method | Screw |

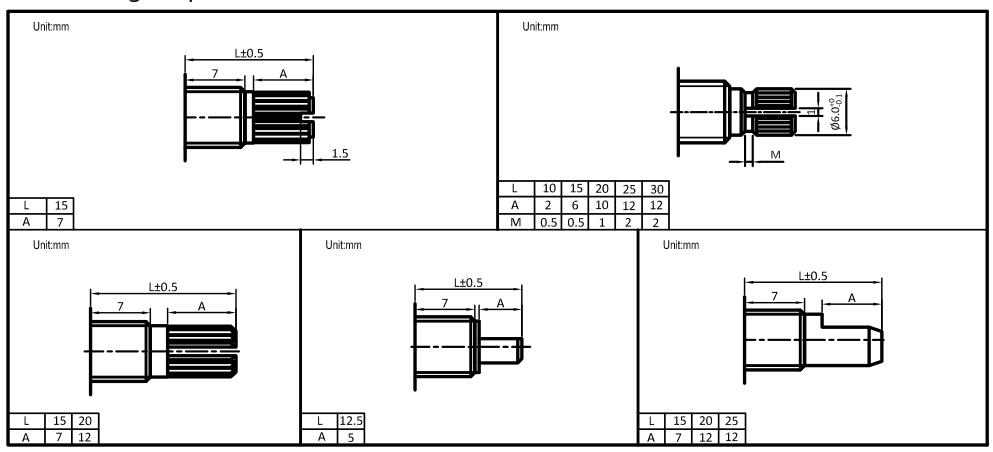

| Shaft type | Optional |
|
|
|
| Shaft length | Optional |
|---|---|
| Center detent | 口None 口 1CC |
| Total resistance | 500Ω-1.000kΩ |

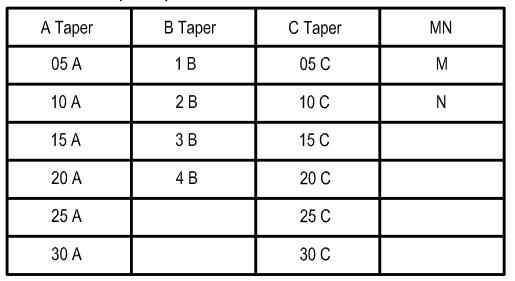

| Resistance taper | Optional |
| Operating temperature range | -10℃-+70℃ |
|
|
|
Electrical characteristics |
||
|---|---|---|
| Total resistance tolerance | 口±20% 口Other | |
| Rated power | 0.05W | |
| Max. operating voltage | 50V AC, 20V DC | |
| Residual resistance | 20Ω max. | |
| Sliding noise | Less than 150mV | |
| Insulation resistance | 100MΩ min., 250V DC | |
| Voltage proof | 250V AC for 1 min | |
|
|
|
|
Mechanical characteristics |
||
|---|---|---|
| Total rotational angle | 300°±5° | |
| Rotational torque | 2~25mN.m | |
| Stopper strength | 0.5N.m | |
| Push-pull strength | 80N max | |
| Vibration | 10 to 55 to 10Hz/min., amplitude is 1.5mm for all the frequencies, in X, Y and Z directions and for 2 hours respectively | |
|
|
|
|
| Durability | Operating life | 15.000 cycles |
|---|---|---|
| MOQ | 2.000pcs |
