R11101NOACV1


Part number R11101NOACV1
Number of resistor elements Single gang
Mounting direction Horizontal
Bushing fixing method Screw
Shaft type Optional


Shaft length Optional
Center detent 口None 口 1CC
Total resistance 500Ω-1.000kΩ
Resistance taper Optional
Operating temperature range -10℃-+70℃


Electrical characteristics

Total resistance tolerance 口±20% 口Other
Rated power 0.05W
Max. operating voltage 50V AC, 20V DC
Residual resistance 20Ω max.
Sliding noise Less than 150mV
Insulation resistance 100MΩ min., 250V DC
Voltage proof 250V AC for 1 min



Mechanical characteristics

Total rotational angle 300°±5°
Rotational torque 3~45mN.m
Stopper strength 0.5N.m
Push-pull strength 80N max
Vibration 10 to 55 to 10Hz/min., amplitude is 1.5mm for all the frequencies, in X, Y and Z directions and for 2 hours respectively



Durability Operating life 15.000 cycles
MOQ   1600pcs

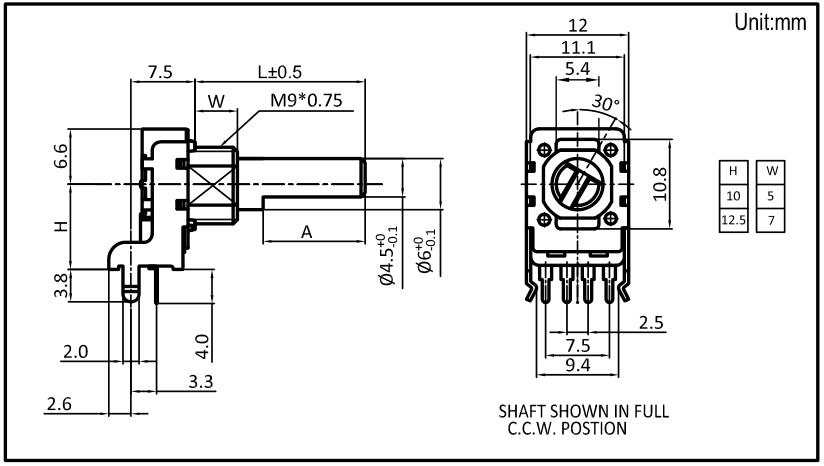

Dimensions

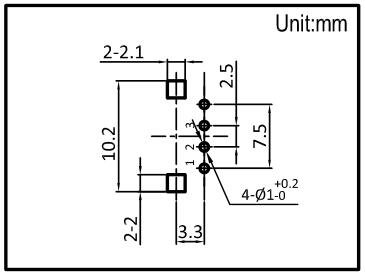

Mounting Hole Dimensions

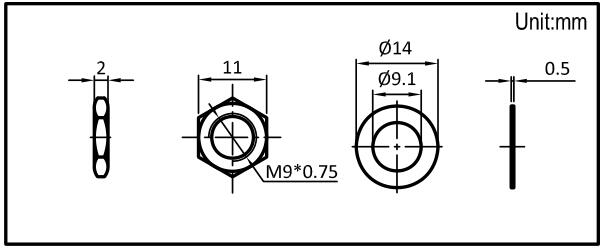

Attached Parts Dimensions

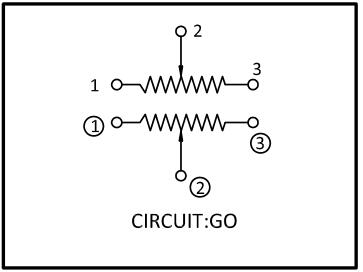

Circuit Diagram

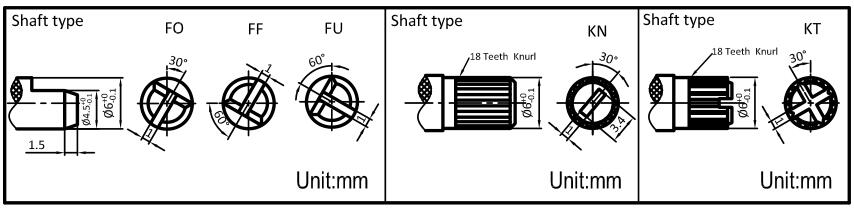

Shaft Options

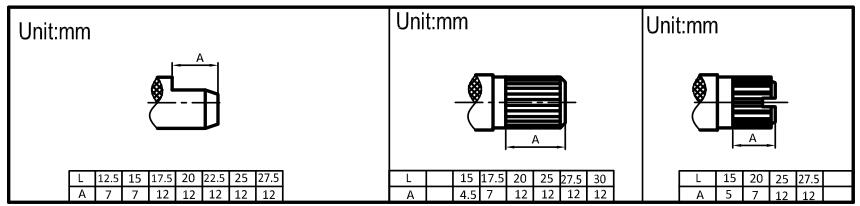

Shaft Length Options

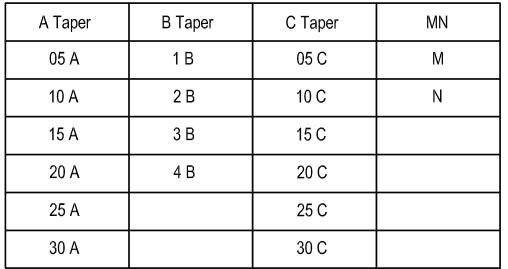

Resistance Taper Options

Packing specifications


Quantity per carton 1600pcs
Packing method Plastic box
Carton dimension 460X285X310mm


Soldering conditions


Wave soldering

Soldering surface temperature 100℃ max
Heating time 2 min. max
Soldering temperature 260℃ ±5℃ max
Soldering time 5 ±1s
No. of solders 2 time max



Hand soldering

Tip temperature 350℃ max
Soldering time 3s max
No. of solders 1 time
