R09131NOAXV1
| Part number |
R09131NOAXV1 |
| Number of resistor elements |
single gang |
| Mounting direction |
Horizontal |
| Bushing fixing method |
|

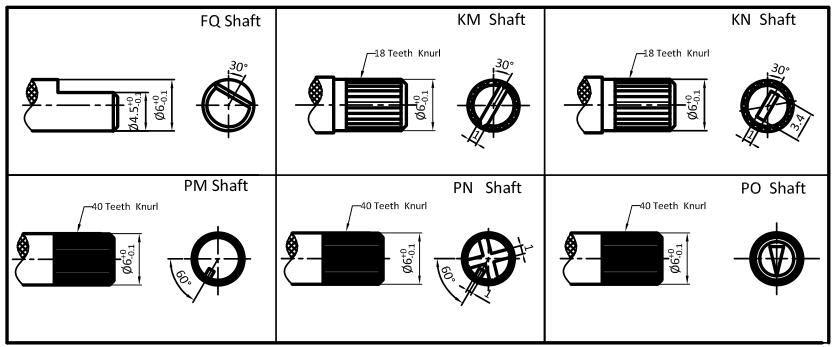

| Shaft type |
Optional |
|
|

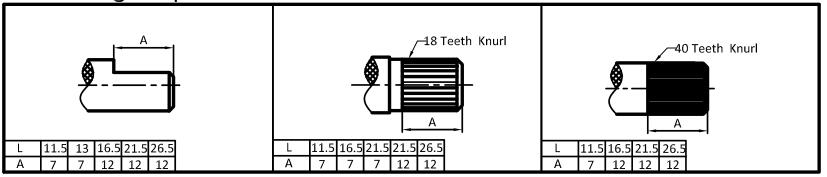

| Shaft length |
Optional |
| Center detent |
口None 口 1CC |
| Total resistance |
500Ω-1.000kΩ |

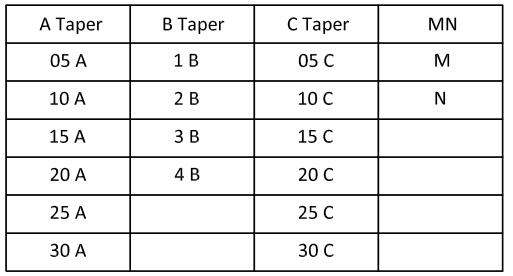

| Resistance taper |
Optional |
| Operating temperature range |
-10℃-+70℃ |
|
|
Electrical characteristics |
| Total resistance tolerance |
口±20% 口Other |
| Rated power |
0.05W |
| Max. operating voltage |
50V AC, 20V DC |
| Residual resistance |
20Ω max. |
| Sliding noise |
less than 150mV |
| Insulation resistance |
100MΩ min., 250V DC |
| Voltage proof |
250V AC for 1 min |
|
|
|
Mechanical characteristics |
| Total rotational angle |
300°±5° |
| Rotational torque |
5~45mN.m |
| Stopper strength |
0.3mN.m |
| Push-pull strength |
50N max |
| Vibration |
10 to 55 to 10Hz/min., amplitude is 1.5mm for all the frequencies, in X, Y and Z directions and for 2 hours respectively |
|
|
|
| Durability |
Operating life |
15.000 cycles |
| MOQ |
|
1600pcs |

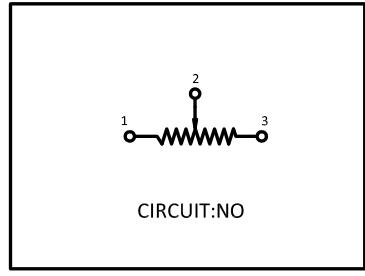

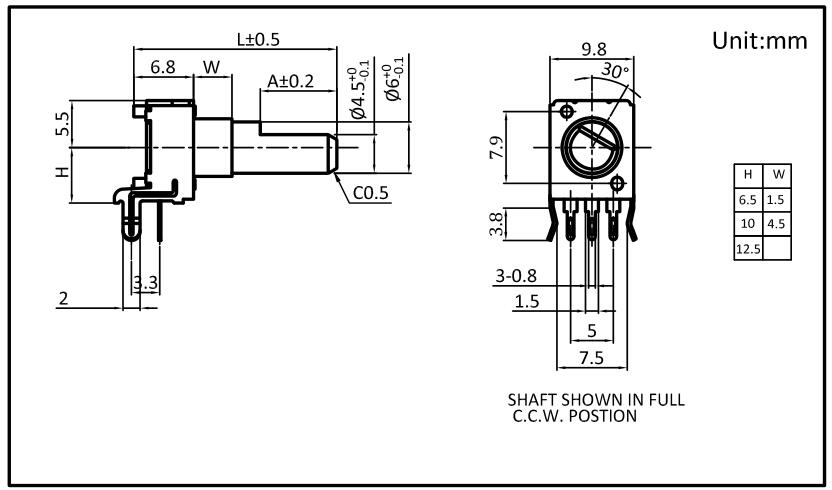

Attached Parts Dimensions
Packing specifications
| Quantity per carton |
1600pcs |
| Packing method |
Plastic box |
| Carton dimension |
460X285X310mm |
|
|
Soldering conditions
Wave soldering |
| Soldering surface temperature |
100℃ max |
| Heating time |
2 min. max |
| Soldering temperature |
260℃ ±5℃ max |
| Soldering time |
5 ±1s |
| No. of solders |
2 time max |
|
|
|
Hand soldering |
| Tip temperature |
350℃ max |
| Soldering time |
3s max |
| No. of solders |
1 time |
|
|
|
Note:
- The colors shown in this series may different from the actual products.
- Apart from the above listed products, there are more types available.
- If there are special requirements for the products, please contact us for details.
